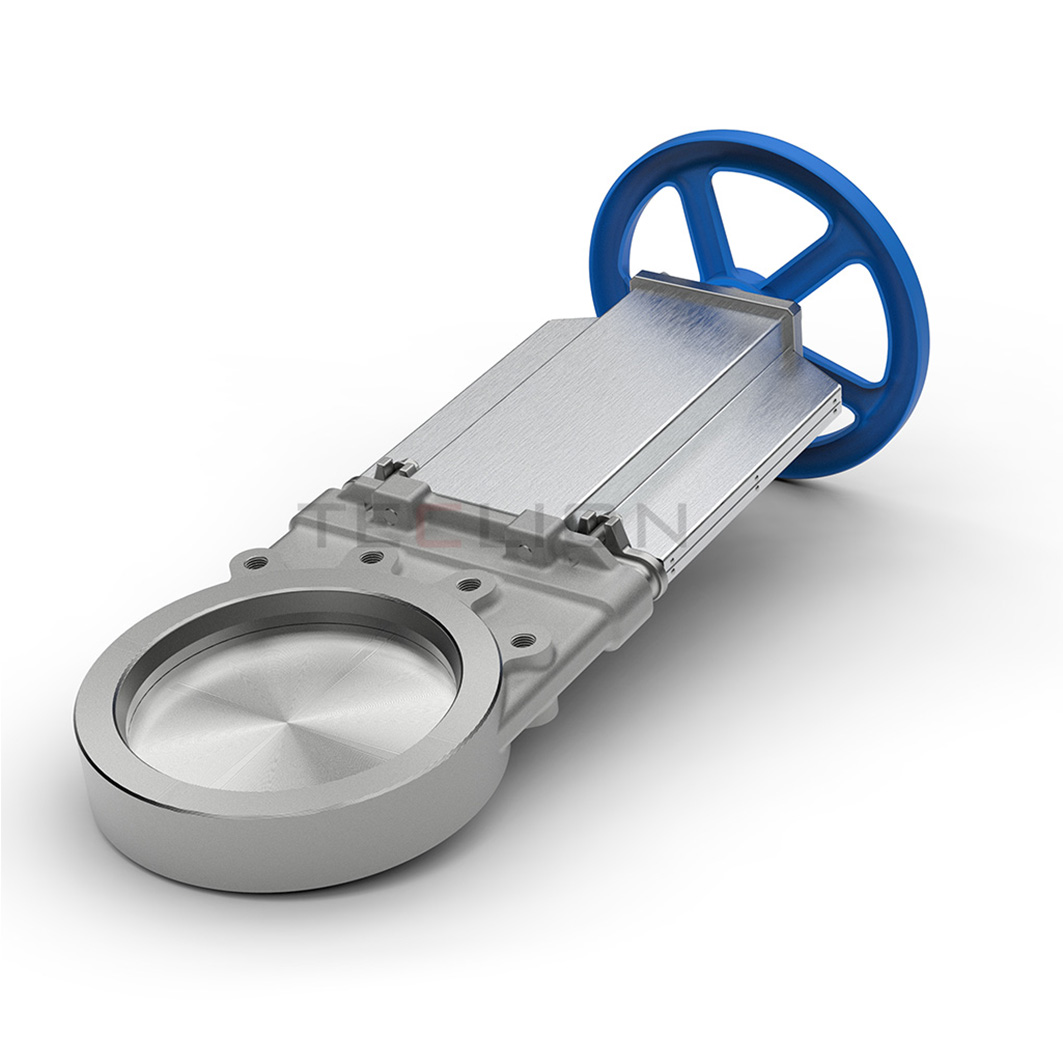

GATE VALVES FOR POWDERS AND GRANULAR PRODUCTS

Seal in the drop through opening,packing sealed to the outside

Low construction height

Product temperature range from -20 to +120℃

Suitable for dilute phase pressure up to 1 .5barg (GWL) and 3.5barg (GWH)

Materials of construction:stainless steel or carbon steel

Flange drillings available to PN1O,ANSI l5Olbs

Manual (handwheels chainwheels.bevelgeras)or pneumatic version available

InstallatIon posthon up to 30 to the horizontal

The integral metal seated version is available with shut off capability exceeding current MASS-SP81 standards.
